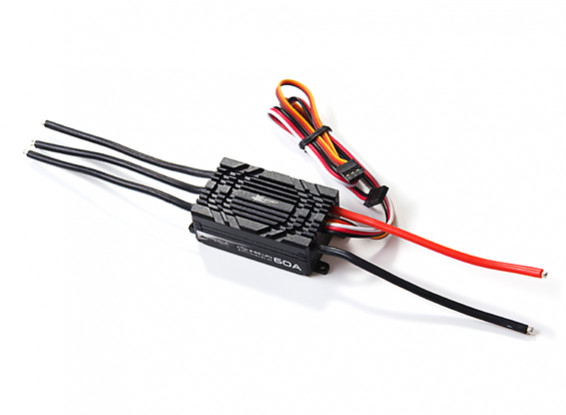

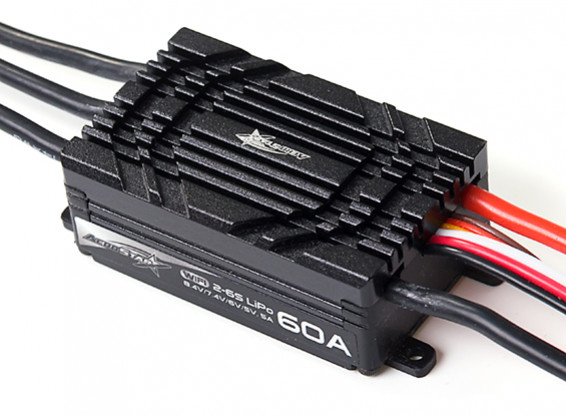

The Aerostar WiFi range of brushless electronic speed controllers (ESC) is designed for RC fixed wing aircraft but can also be used in helicopters. They feature super smooth startup, linear throttle response, multiple protection features, all at a fantastic price.
These AeroStar WiFi ESCs can be easily set up using the AeroStar WiFi Connect device (see ACC tab below). This device uses a WiFi connection and an APP on your android phone to configure the ESC. Otherwise, you can still use your transmitter and listening to the tones to configure the ESC.
Features:
• Powerful microprocessor with strong anti-interference
• Adjustable startup mode for either planes or helicopters
• Safety features on power up will stop the motor if the throttle is set high
• Low voltage cut-off
• Propeller Brake
• Setup via WiFi device and Android mobile APP (separate device)
• BEC with multiple voltage settings, 8.4V/7.4V/6V/5V, 5A
• ASCF (Active Switch Continued Flow) technology, higher efficiency, to massively reduce heat generation
Default settings:
• Brake: Off
• Battery type: Lipo
• Cutoff Voltage: Medium
• Timing: 15deg
• Startup mode: Normal (fixed wing)
• Governor mode: Off
• PWM Frequency: 16KHz
• BEC Voltage: 5V
• Voltage cut-off option: Reduce cutoff
• Battery Cells: Auto
• Motor rotation: Normal
• ASCF: Off
• Reverse function: Off
Specs:
Input Voltage: 2~6S lipo battery
Continuous Current: 60A
Burst Current: 80A
BEC Output: 8.4V/7.4V/6V/5V, 5A
Programmable: Yes
Dimensions: 65.5x34x21mm
Weight: 79g
Rx Connector: JR type (white, red, black)
WiFi Connect Wire: JR type (orange, red, brown)
